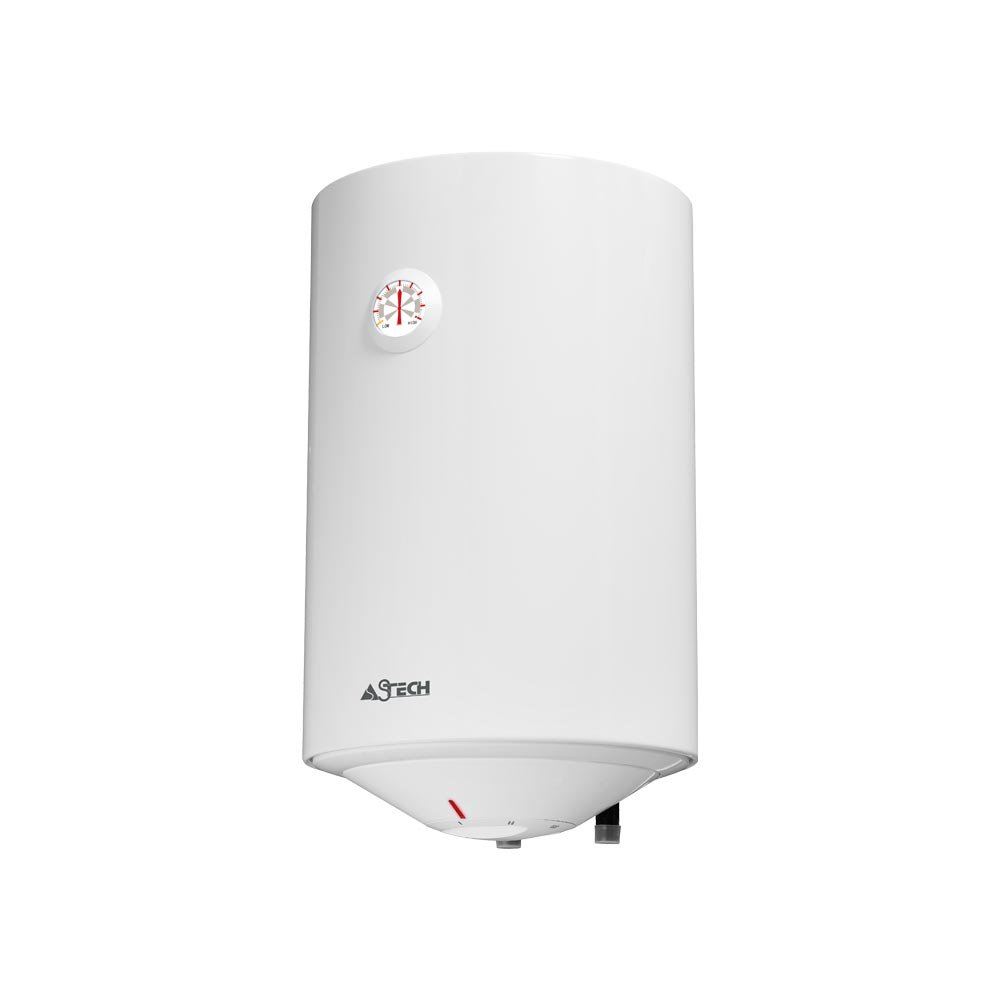

Chauffe eau ASTECH WHC-30M2-30L

ASTECH MODELS WTH-30L-M2
Capacity,L 30
Rated Power,W 1500
Voltage,V 220~240
Frequency,HZ 50/60
Current,A 6,52
External Dimensions H/W/D,mm φ340*570
Net Weight,Kg 14,25
Gross Weight,Kg 15,9
Number Of People 1-2
Control Panel MECHANICAL
Type Of Thermostat snap action thermostat
Temperature Range,℃ 30-75
Maximum Working Pressure,Mpa 0,6
Degree Of Protection Against Humidity IPX4
Temperature Indicator N
Heating Indicator Y
Power Indicator N
Over Heat Protection Y
Max Temperature 82
Mixing valve N
Protection Against Freezing N
Dry heater N
Inner Tank Enamel tank
Material Thickness,mm 1,8
Type of Caoting Enamel
Coating thickness,mm 0.26-0.5
Outer Cabinet Material SPCC
Average Thickness Of Insulation,mm 20
Density of Insulation,Kg/m³ 33-35
Magnesium Anode Size,mm φ18*110
Type of Heating Element SUS316L
Power Cable length 1
Type Of Mounting VERTICAL
Standard Mount Hang Mount
Water Connection size G1/2
Mount Accessory Bulgy Screw/Safety Valve
Carton size,mm 405*370*615
Certification CB/CE
